CatCore

CatCore LS X4 – D

255,708Ft

Connector panel four channel amps. X4 Connection panel, XLR  4ch, AES/EBU separate, Speakon NL8

Brand

Rendelésre

Compare
Kedvencekhez ad
Cikkszám: LS X4 - D Kategória:
Leírás

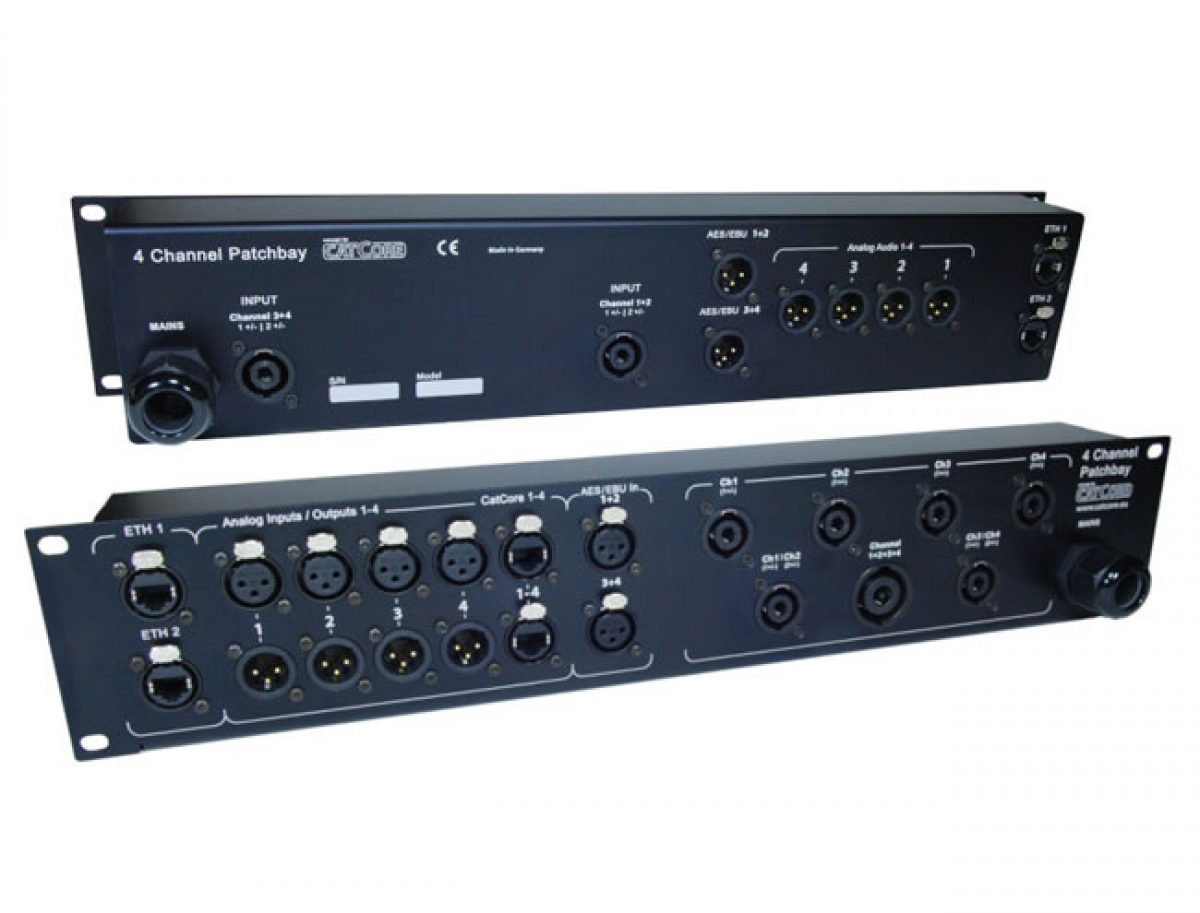

2RU-Panel for 4-ch amps featuring 6x NL4, 1x NL8, 2x Ethernet, 4x NF + CatCore, 2x AES/EBU

Perfekt fit for quad-channel-amps such as Powersoft X4, Outline XO4, D&B D20 and D80, CAMCO Q-POWER 14, Fohhn D4 or any other four channel amp.

All purpose patchbay for 4-channel audio amplifiers and ampracks. Outputs as Speakon 4- and 8-channels in separate and mixed pinout. Audio inputs via XLR and CatCore, 2x Ethercon throughput, 2x AES/EBU via XLR. Speaker inputs via NL4 (2-Channels each). Isolated feedthrough for mains cable (M25 cable gland).

Low profile design, all connections on backside as sockets. Therefore usable witch any Amp, and at any position within your rack. All internal wiring on thick-layer PCBs with 4mm² cross section for miniumum losses. All type of amp outputs as Speakon, Jack, XLR, Binding Post, AP/EP etc. can be connected via Adapter to NL4

Anodized aluminium housing 19″ / 2RU.
Low depth allows even positioning behind devices within rack.

Laser engraving for permanent marking.
